Manual Circular V Cut PCBA Separator Machine -YSV-1M Smt Equipment

Name: Manual Circular V Cut PCBA Separator Machine YSV1M Smt Equipment
Brand: YUSH
Price: 1 USD

Quality Manual Circular V Cut PCBA Separator Machine -YSV-1M Smt Equipment for sale

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $1,000-3,000 / set

Weight : 65 kg

Power : 10 kW

Voltage : 110/220 V

Cutting speed : manual

Cutting thickness : 0.6-3.5mm

Max cutting length : 600mm

Size : 787x400x436 mm

PCB cutting length : 460/700 mm

Blade material : SKH-9

Mold material : SKH-11 Steel

Core components : PLC, Gearbox, Motor, Pump

Blade life (metal) : 0.5 Year

Blade life (PCB) : 1 Year

Min speed : 100/200/300/500mm/s

Model : YSV-1M

Contact Now

Manual Circular V Cut PCBA Separator Machine - YSV-1M

YSV-1M Economical Type Features

PCB Protection
Calibration Blade Setting
All Speed Control By Human
More Accurate Cutting

Technical Specifications

Model	YSV-1M
PCB Cutting Length (mm)	460/700
Cutting Speed (mm/s)	Manual
Cutting Thickness (mm)	0.6~3.5
Size (mm)	400780480 / 1220560650
Weight (Kg)	55 / 80
Blade working life for metal (Year)	0.5
Blade working life for PCB (Year)	1
Guarantee (Year)	1
Delivery (Day)	1

Application Range

For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board), LED applications.

Construction Quality

Mold made of SKH-11 Steel, Blade is SKH-9 (From Japan). Dedicated to high strength cutting with excellent toughness, able to cut metal board.

Technical Characteristics

Structural precision with even load distribution to eliminate internal stress
Safe and easy to operate
Designed for electronics, cell phones, computers, PCB, and FPC applications

Key Features

Round knife with manual cutting against lower linear knife for reduced stress
Separate pre-scored PCB assembly without stress on PCB or components
One touch programming of cut length with digital display
Separating speed adjusted by rotary knob
Handle intermittent scoring or cut-outs
Precise cutting of boards with projected components
Large stainless steel platform prevents board wobble with adjustable height and angle
Optional PCB conveyor belt to remove finished boards
Adjustable clearance between circular and linear blades for different groove depths

Manufacturer Advantages

Original PCB depanelizer manufacturers with competitive pricing
Same-day technical support services
30-minute response time for customer complaints
Panel experts providing professional PCB solutions
Reliable machine manufacturer with 15+ experts, each with over 6 years of experience

Packaging & Shipping

Product Tags:

Manual PCB depaneling machine

V Cut PCBA separator

SMT equipment with warranty

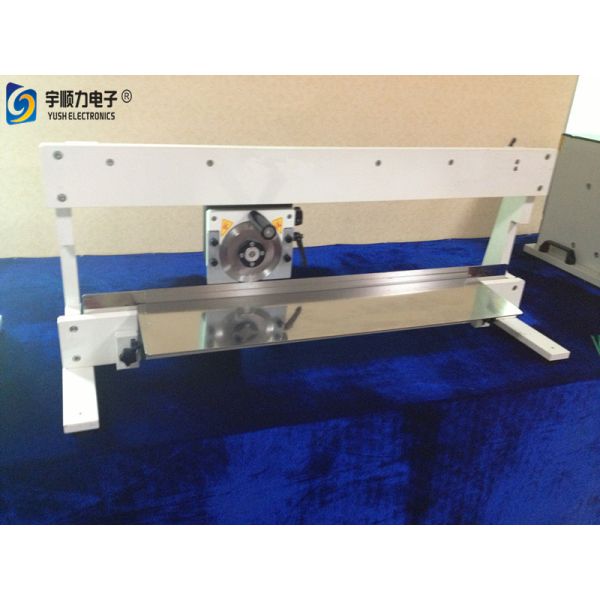

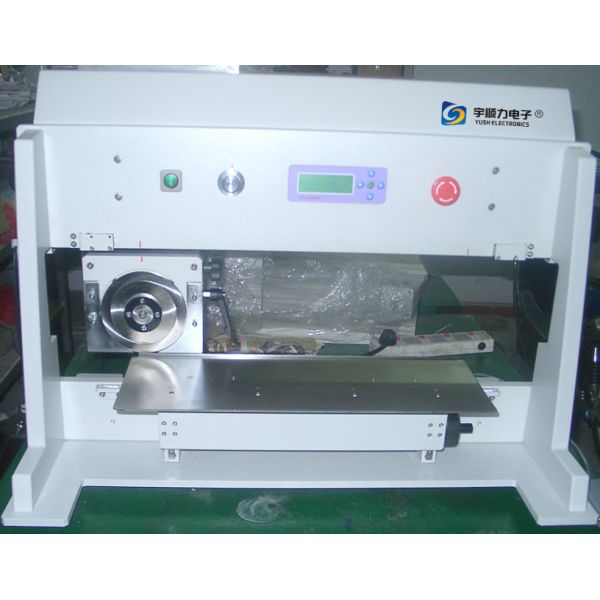

Manual Circular V Cut PCBA Separator Machine -YSV-1M Smt Equipment Images
