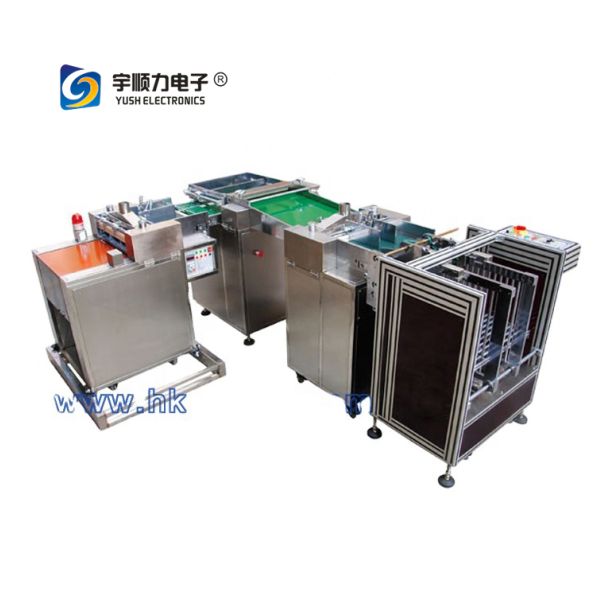

Precision PCB V-Groove Forming Machine ,Manual Type for Circuit Board Separation Preparation,Professional PCB V-Groove Machine

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $15,000 / set

Weight : 185 kg

Power : 10 kW

Voltage : 220V, 110V

Cutting Width : Longitudinal 70mm, Wide 380mm

Thickness Range : 0.6~2.5 mm

Cutting Speed : 12mm/min

Total Blades : Upper 10pcs, Down 10pcs

Dimensions : 1200 mm x 980 mm x 1400 mm

Conveying Speed : 20-30 (adjustable)

Plate Thickness : 1.6 mm (reference)

Core Components : PLC, Gearbox, Motor, Pump

Base Plate Material : Aluminum

Cooling Requirement : Water or alcohol

Blade Compatibility : Aluminum and ordinary plates

Speed Adjustment : Plate thickness dependent

Contact Now

Precision PCB V-Groove Forming Machine - Manual Type
Professional manual PCB V-groove machine for circuit board separation preparation with precise cutting capabilities.
Operation Guidelines
  • V-CUT aluminum base plate conveying shaft transmission speed adjustment range: 20-30. Thicker plates require slower transfer speeds, while thinner plates allow for faster adjustable speeds. For standard 1.6mm plate thickness, recommended speed is approximately 25.
  • V-CUT aluminum base plate conveying speed coordinates with cutter knife shaft speed. Standard plates can be processed at slower speeds.
  • V-CUT knife is not suitable for ordinary aluminum plate cutting. Aluminum plates require specialized V-cut knives, though standard V-cut knives with flash can also be used for regular plates.
  • When using V-CUT aluminum plate, cooling water or alcohol must be used for temperature control.
Precision PCB V-Groove Forming Machine ,Manual Type for Circuit Board Separation Preparation,Professional PCB V-Groove Machine Precision PCB V-Groove Forming Machine ,Manual Type for Circuit Board Separation Preparation,Professional PCB V-Groove Machine
Technical Specifications
Cutting Width Longitudinal: 70mm; Wide: 380mm
Thickness Range 0.6-2.5 mm
Cutting Speed 12mm/min
Total Blades Upper: 10 pieces, Lower: 10 pieces
Mechanical Dimensions 1200mm × 980mm × 1400mm (W × D × H)
Manufacturer Information
YUSH Electronic Technology Co., Ltd was founded in 2004 and is located in Jiangsu, China's manufacturing hub. The company specializes in professional PCB separator and depanelizer electronic equipment machinery. With advanced production equipment and an experienced development team (half with over 10 years in electronic equipment industry), YUSH designs various PCB separation solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types. Known for quality and competitive pricing, YUSH serves customers worldwide and has become one of China's largest PCB separator production bases.
