High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer

Name: High Quality XRay Solution X6600 Microfocus XRay Inspection System Manufacturer
Brand: YUSH
Price: 35 USD

Quality High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer for sale

Place of Origin : China

Brand Name : YUSH

MOQ : 1 set

Price : $35,000 / set

Voltage : 220V

Power : 1700W

Weight : 1170kg

Dimensions : 1245mm x 1230mm x 1900mm

Core Components : Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear

Table Speed : Adjustable (low, normal, high)

Axis Motion : X, Y, Z three-axis

Inclined Angle : Keyboard controlled

Navigation : Large navigator view

CNC Programming : Mouse-click programmable

Voltage Control : Software adjustable

Current Control : Software adjustable

Image Settings : Brightness, contrast, auto gain, exposure

Anti-collision System : Maximizes tilt and observation

Automatic Analysis : Diameter, cavity proportion, area, roundness

Contact Now

X6600 Microfocus X-Ray Inspection System

High quality industrial X-ray solution for precision inspection and analysis

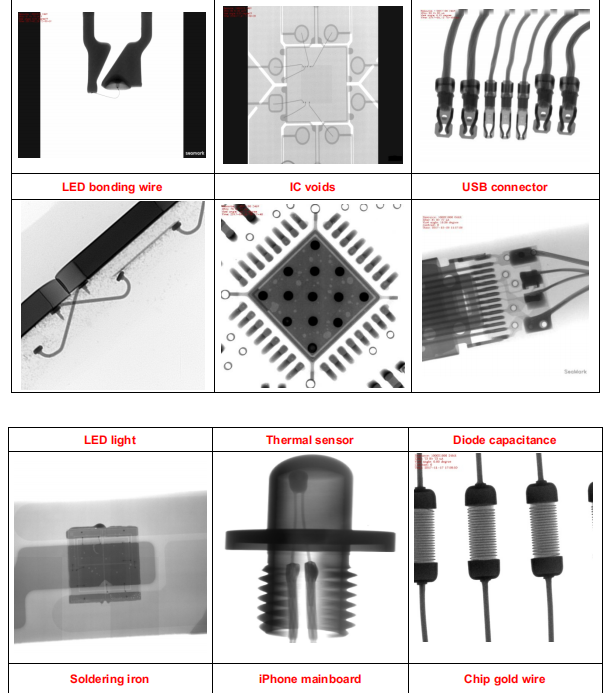

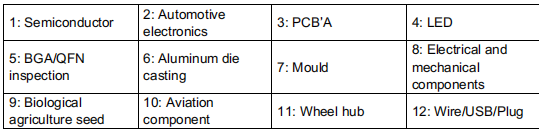

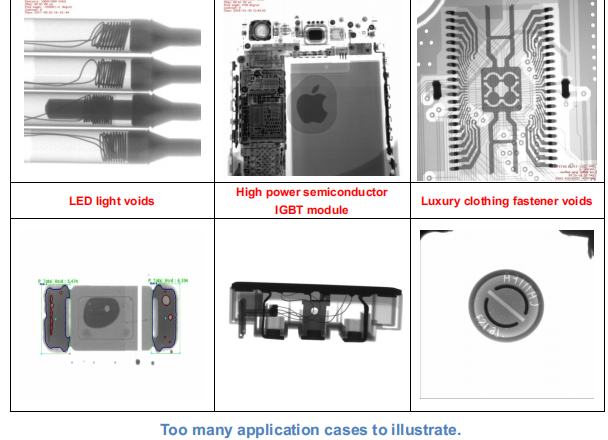

Applications

High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer

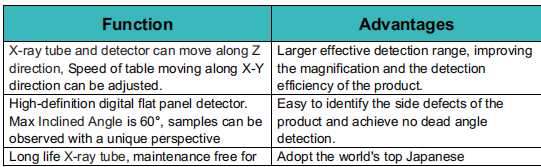

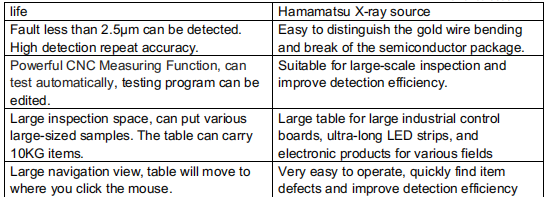

Functions and Features

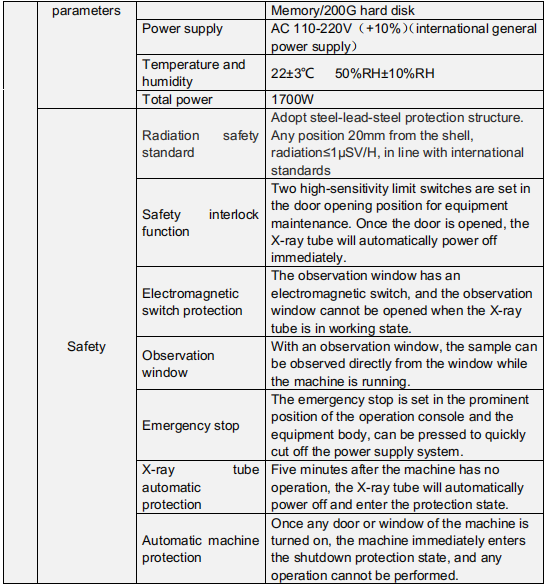

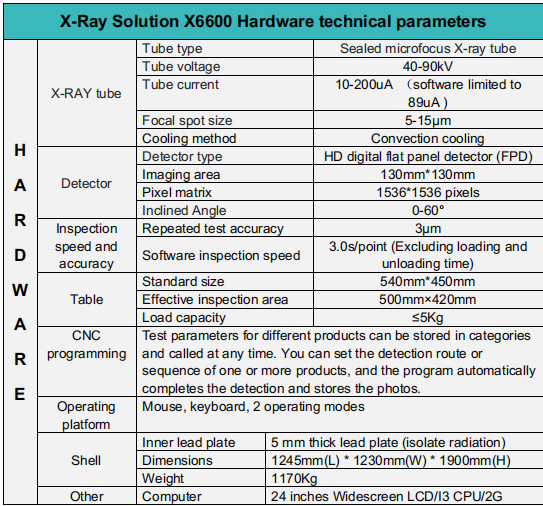

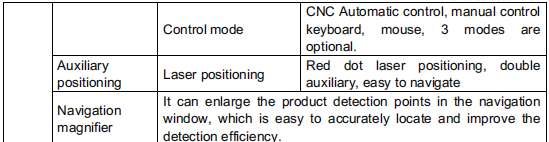

Hardware Technical Parameters

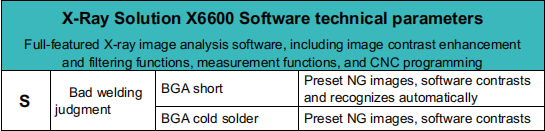

Software Technical Parameters

Table Control Features

Adjustable table speed with three settings: low, normal, and high speed controlled by spacebar
X, Y, Z three-axis motion and inclined angle control via keyboard
Large navigator view with clear navigation image and mouse-click positioning

CNC Programming Capabilities

Simple mouse-click programming interface
Object table moves along X, Y directions for positioning
X-ray tube and detector move along Z direction for precise positioning
Software-controlled voltage and current settings
Comprehensive image settings: brightness, contrast, auto gain and exposure
Adjustable pause time for program conversion
Anti-collision system for maximum tilt and workpiece observation
Automatic analysis of diameter, cavity proportion, area and roundness of BGA components

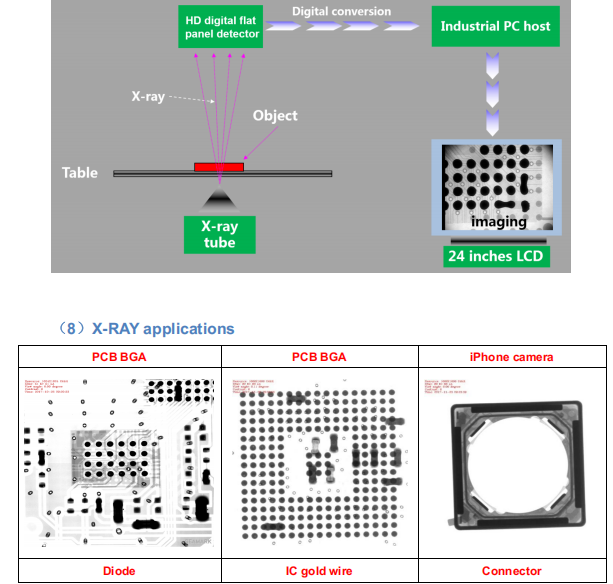

X-Ray Working Principle
