High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer

Name: High Quality XRay Solution X6600 Microfocus XRay Inspection System Manufacturer
Brand: YUSH
Price: 35 USD

Quality High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer for sale

Place of Origin : Guangdong, China

Brand Name : YUSH

MOQ : 1 set

Price : $35,000 / set

Voltage : 220V

Power : 1.7KW

Weight : 1170

Dimensions : 1245*1230*1900

Core Components : PLC, Engine, Gearbox, Bearing, Pressure Vessel, Motor

Table Speed : Adjustable (low, normal, high)

Axis Control : X, Y, Z three-axis motion

Inclined Angle : Keyboard controlled

Voltage Control : Software set

Current Control : Software set

Image Settings : Brightness, contrast, auto gain, exposure

Pause Time : Adjustable for program conversion

Anti-collision System : Maximizes tilt and observation

Automatic Analysis : Diameter, cavity proportion, area, roundness of BGA

CNC Programming : Mouse-click programmable

Contact Now

High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System

Advanced microfocus X-ray inspection system designed for precision industrial applications with comprehensive technical capabilities.

Applications

High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer

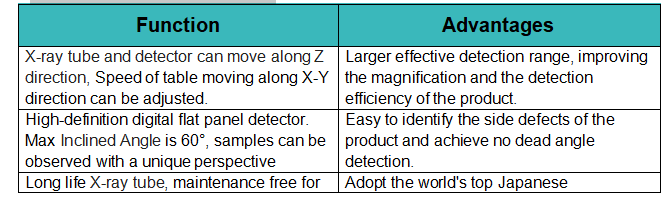

Functions and Features

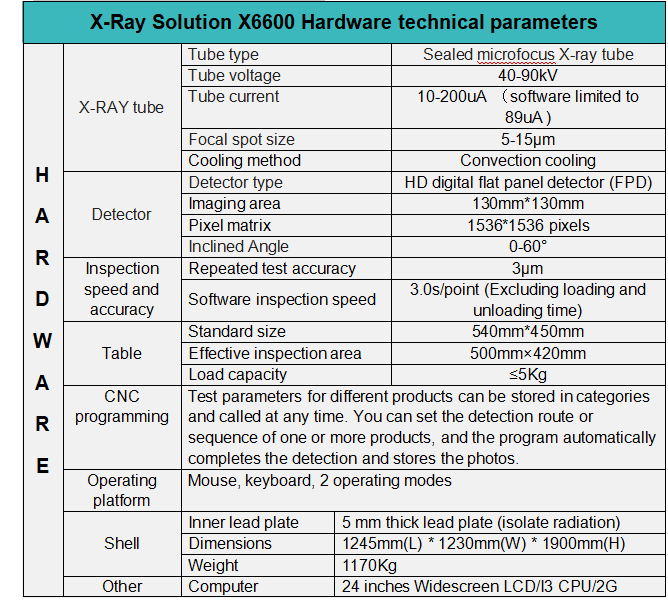

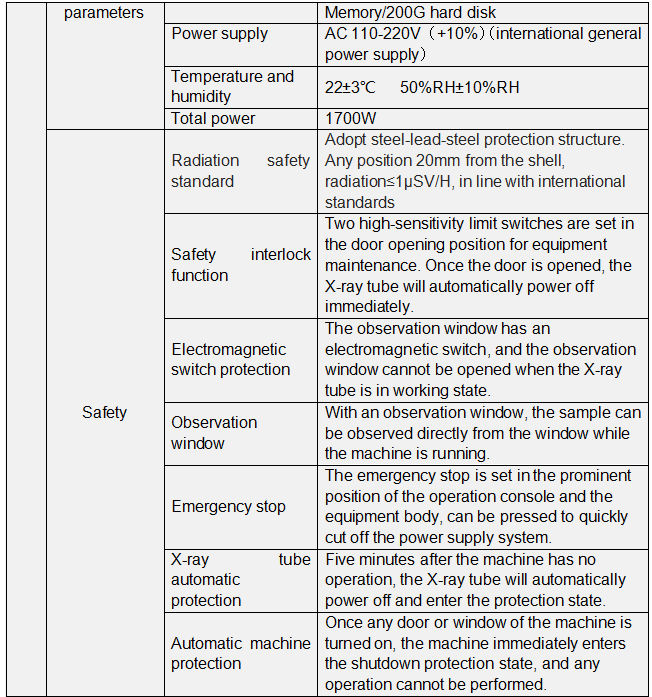

Hardware Technical Parameters

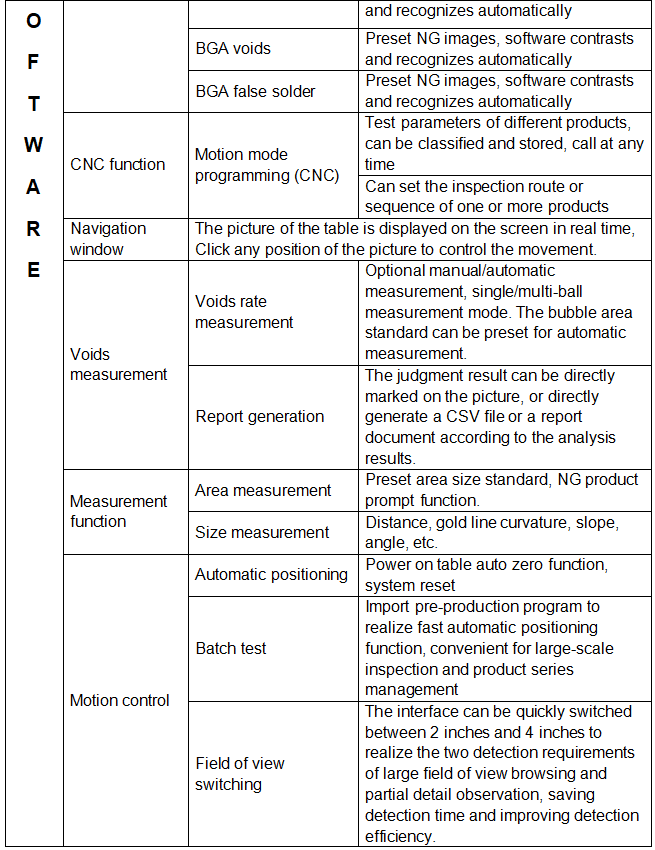

Software Technical Parameters

Table Control System

Adjustable table speed controlled by spacebar: low, normal, and high speed settings
X, Y, Z three-axis motion and inclined angle control via keyboard
Large navigator view with clear navigation imaging - table moves to mouse-click locations

CNC Programming Capabilities

Simple mouse-click programming interface
Object table moves along X, Y directions for positioning
X-ray tube and detector move along Z direction for precise positioning
Software-controlled voltage and current settings
Comprehensive image settings: brightness, contrast, auto gain, and exposure
Adjustable pause time for program conversion
Anti-collision system for maximum tilt and workpiece observation
Automatic analysis of diameter, cavity proportion, area, and BGA roundness

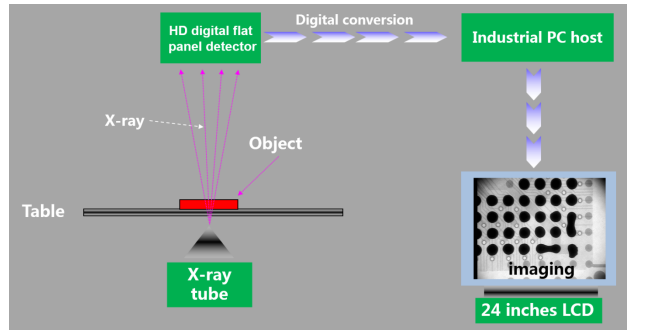

X-Ray Working Principle

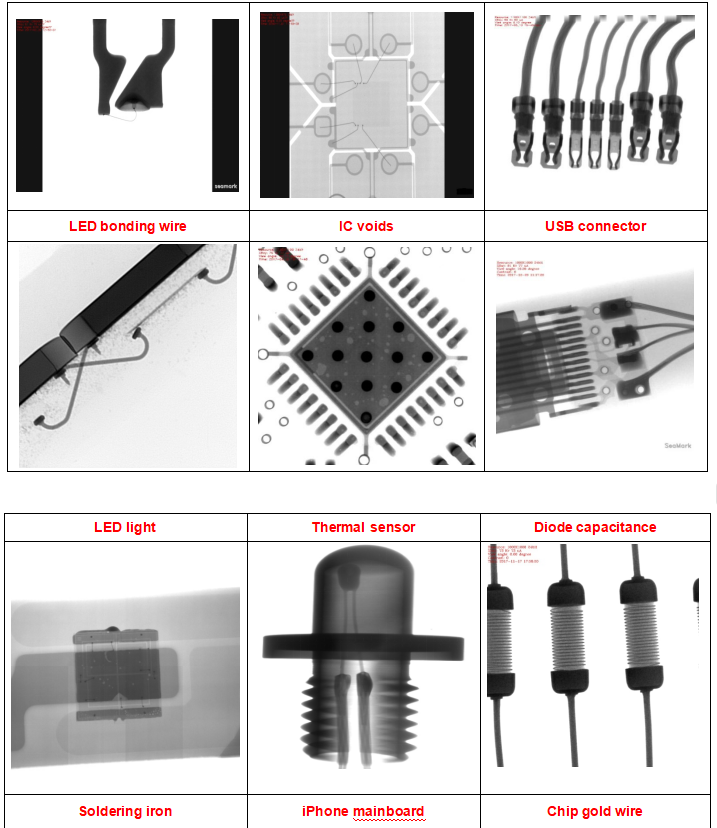

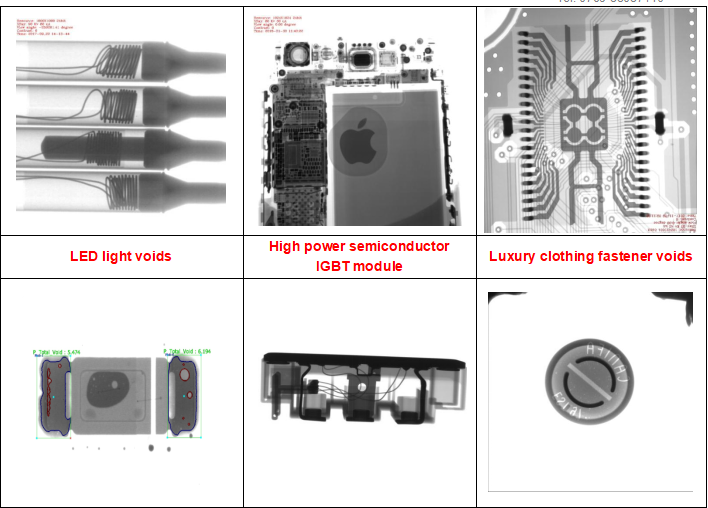

X-RAY Applications
